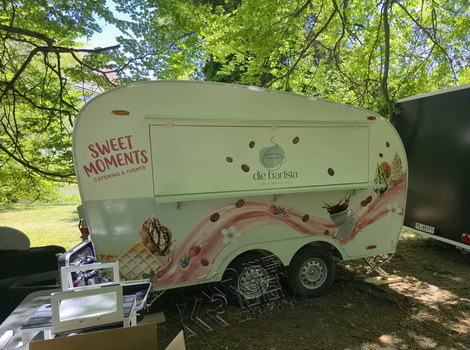

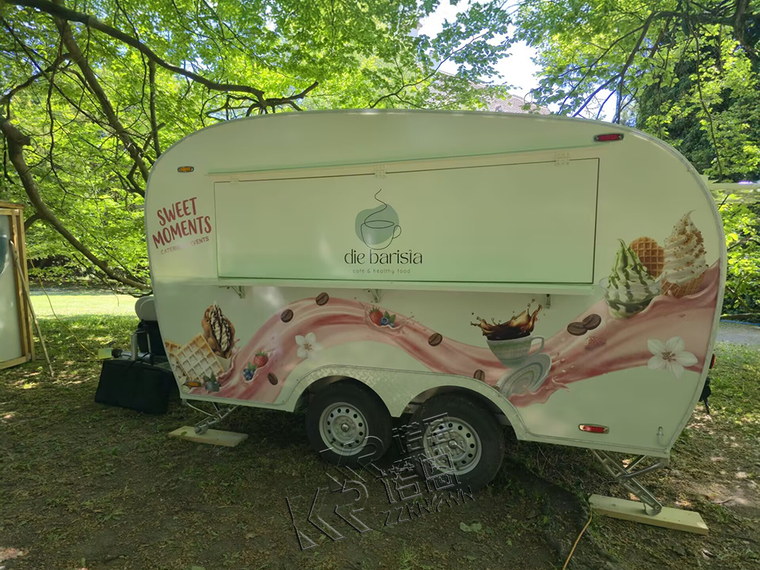

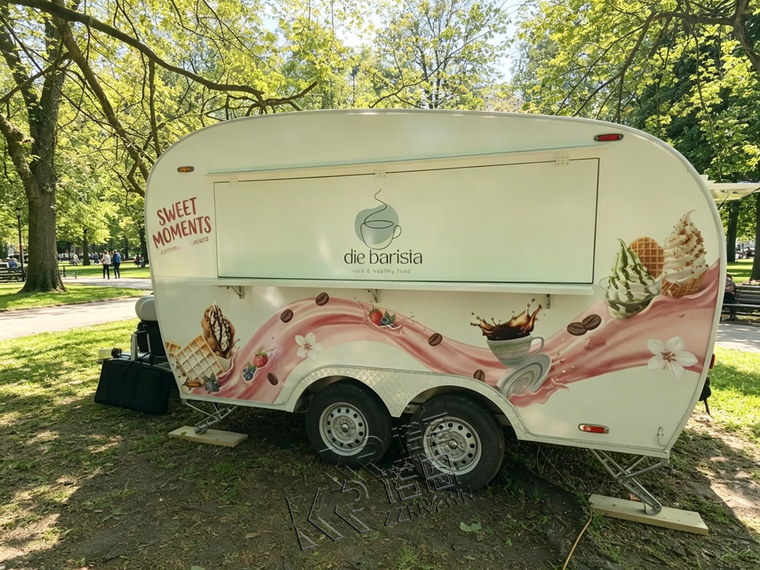

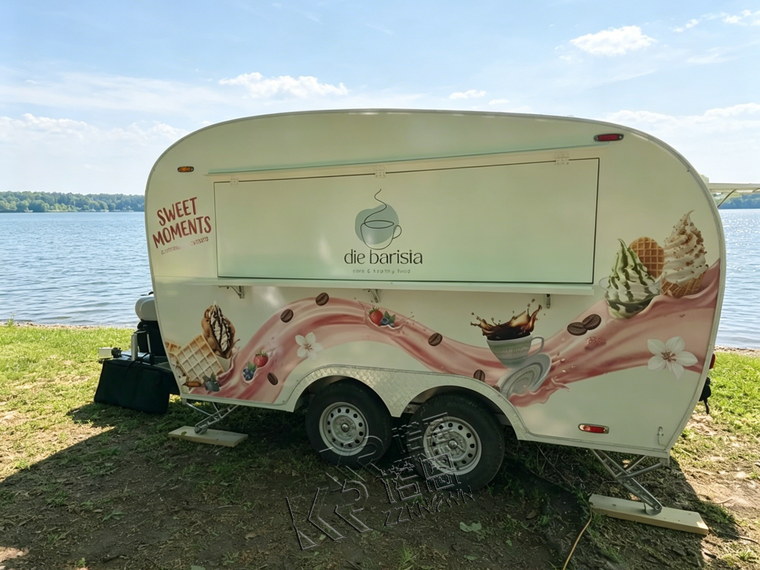

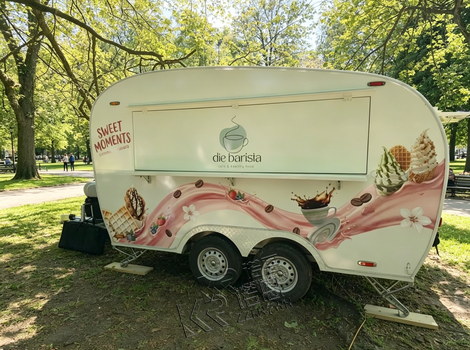

The KN-CFB400 custom curved food trailer is a 4-meter mobile catering unit developed for dessert shops, coffee brands, ice cream vendors, bakeries and event operators. Its rounded body creates a recognizable roadside storefront, while the double-axle chassis, braking system and stabilizer jacks help provide a stable working platform during daily service.
This completed customer project demonstrates how a standard mobile food trailer can be transformed into a branded dessert business. The exterior wrap, body color, service-window positions, interior workflow and commercial equipment can all be planned around the buyer’s menu, serving process and destination-market requirements. Buyers looking for other layouts can also explore our OEM food trailer collection.

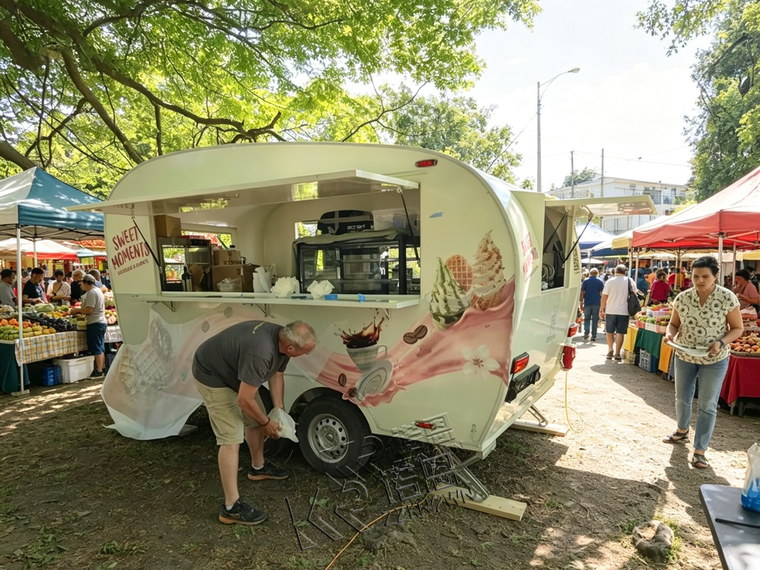

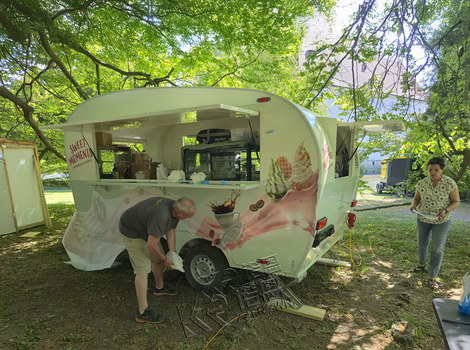

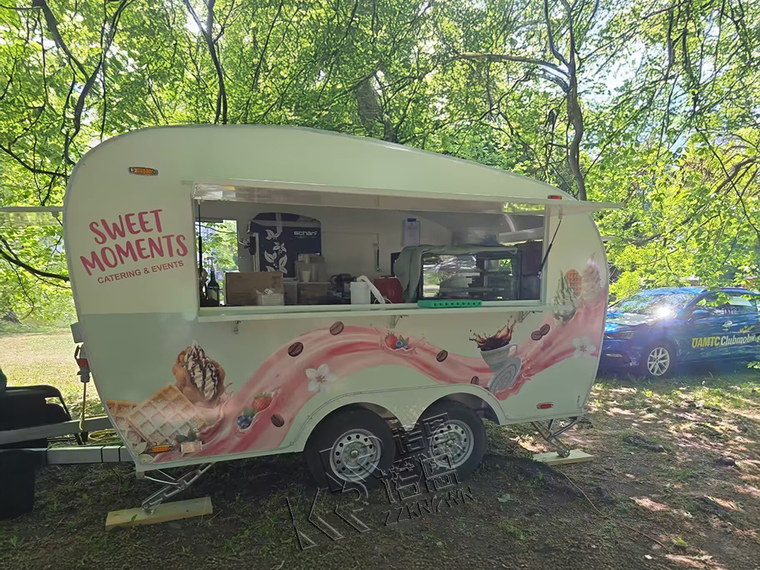

The verified trailer body measures 4000 x 2000 x 2300 mm and uses four customer-facing windows. A central 2.5-meter serving window with a fold-out counter creates a wide ordering and pickup area, while the additional windows support ventilation, product display or a separate service point. This layout is suitable for busy markets, fairs, parks, catering events and seasonal dessert businesses.
Inside the KN-CFB400, full-length LED strip lighting brightens the work area. Stainless-steel counters, lower cabinets and a single sink with a hot-and-cold faucet provide a practical foundation for food preparation and cleaning. The equipment plan can accommodate drawer refrigerators, a 900 mm square cake display case, a 600 x 600 x 800 mm freezer and a drinks display cabinet. Final appliance selection and placement are confirmed according to the menu, operator count, ventilation needs and available power load.
Whether the trailer is used as a mobile coffee trailer, ice cream trailer, bakery trailer, dessert trailer or compact mobile kitchen, our team can prepare a customized 2D or 3D layout before production. Browse the complete food truck and trailer range for more body styles and operating formats.
For this European project, the trailer was planned with separate 220V and 380V circuits, EU sockets and a distribution box. European marker lights, tail lights and a 13-pin trailer connection were also included in the build specification. Voltage, socket type, plug system, lighting, axle configuration and documentation should always be reviewed for the destination country before production. Local registration and food-service requirements vary, so buyers should confirm the applicable rules with their local authorities.

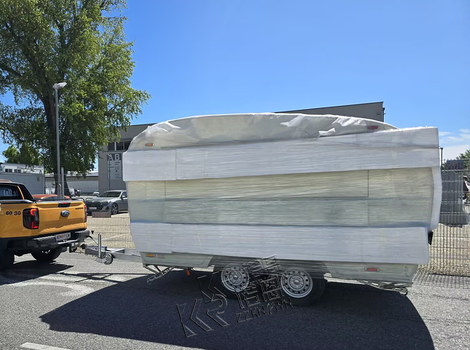

Exterior colors, printed wraps, logo placement, counters, windows, cabinets, water-system components and kitchen equipment can be customized. ZZKNOWN supports layout review, equipment matching, production inspection, protective packing and export coordination. Learn more about our manufacturing and project support on the ZZKNOWN factory profile.
To receive an accurate proposal, send us your destination country, preferred trailer size, menu, required equipment, voltage, plug standard and branding files. Our team will review the workflow and prepare a suitable configuration for your business. Contact ZZKNOWN for a custom KN-CFB400 layout and quotation.
| Specification | KN-CFB400 Configuration | Customization Notes |
|---|---|---|
| Model | KN-CFB400 | OEM layout and branding available |
| Overall Size | 4000 x 2000 x 2300 mm | Alternative sizes can be evaluated |
| Body Style | Custom curved dessert-trailer body | Body color, graphics and logo placement customizable |

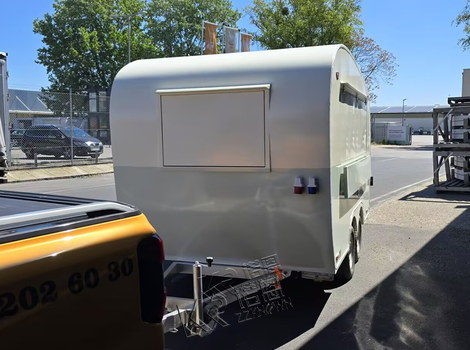

| Chassis | Double axle, four wheels, brakes and stabilizer jacks | Axle and towing setup reviewed by destination |
| Service Windows | Four windows; one central 2.5 m serving window with fold-out counter | Window quantity, size and position customizable |
| Electrical System | Separate EU 220V/380V circuits; distribution box | Voltage, frequency, sockets and plugs selected by market |
| Socket Plan | 15 x 220V sockets and 2 x 380V sockets | Final quantity matched to the equipment load |
| Interior Work Area | Stainless-steel worktops with lower cabinets | Counter and storage layout can be adjusted |
| Water System | Single sink with hot-and-cold faucet | Tank, pump, heater and sink plan available by request |
| Lighting | Full-length LED strip lighting | Interior and exterior lighting options available |
| Appliance Planning | Drawer refrigeration, cake display, freezer and drinks display options | Equipment selected according to menu and workflow |
| Road Lighting | EU marker/tail lights and 13-pin connection | Reviewed for the destination country |
Specifications shown are based on this completed customer project. Final configuration is confirmed in the quotation and approved layout.
