Before installing the glass panels, check the aluminum window frame carefully. Make sure the upper and lower tracks are clean and free from dust, metal pieces, or packaging materials. Any small object inside the track may stop the glass from sliding smoothly.
Also check the opening direction of the food trailer service window. The inside and outside of the window must be identified before installation. This is very important for square food trailers, mobile food trailers, and food vending trailers because the glass panels need to match the correct inner and outer tracks.

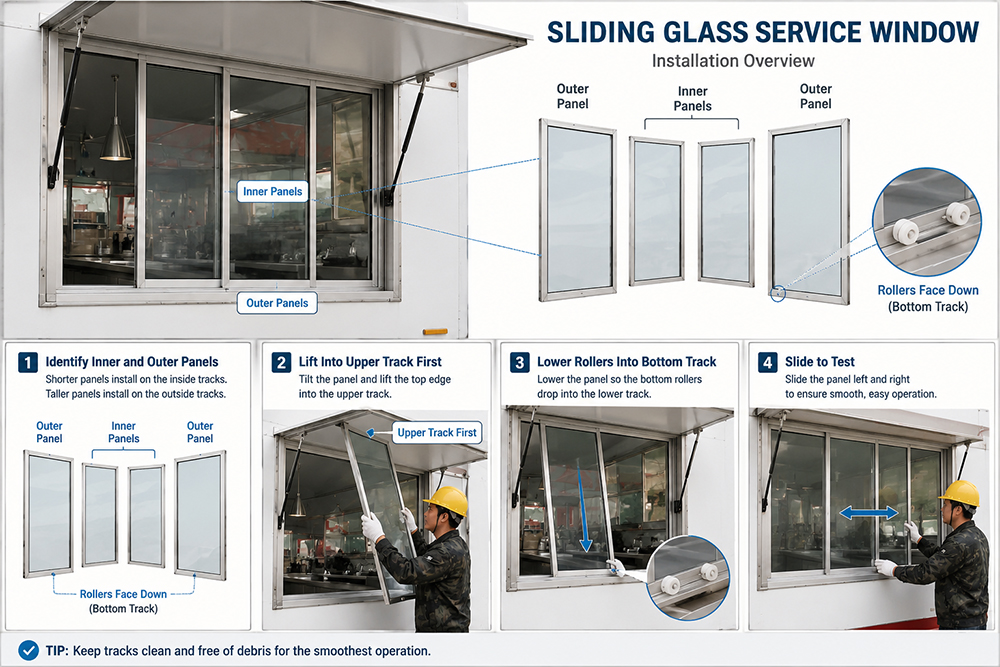

Each sliding glass panel has a correct installation direction. The side with the small rollers should always face downward. These rollers are designed to sit in the lower track and allow the glass window to slide smoothly.
Do not install the glass panel upside down. If the rollers are placed at the top, the window will not move correctly and may damage the track or glass frame.
For many square food trailer sliding windows, the glass panels are not all the same height. The shorter glass panels are usually installed in the inner tracks, closer to the inside of the food trailer. The taller glass panels are installed in the outer tracks, closer to the outside of the trailer.
This layout helps the window overlap correctly and keeps the sliding structure stable. Before placing the glass into the frame, compare all panels and confirm which panels belong to the inner side and which belong to the outer side.
Hold the glass panel firmly with both hands. Keep the panel slightly tilted and push the top edge of the glass frame into the upper groove first. The upper track usually has enough space to allow the glass panel to be lifted into position.
This step is important. Do not try to force the bottom of the panel into the lower track first. The correct method is always: upper groove first, lower groove second.
After the top of the glass panel is fully inserted into the upper track, slowly lower the bottom part of the panel. Align the rollers with the lower groove and let the glass panel sit naturally in the track.
Make sure both rollers are inside the lower track. If one side is outside the groove, the window may tilt, jam, or become difficult to slide.
Once the first glass panel is installed, gently slide it left and right. The movement should be smooth and stable. If the glass does not slide easily, lift it slightly and check whether the rollers are properly seated in the lower rail.
For a food concession trailer or mobile food trailer, smooth sliding is important because the service window may be opened and closed many times during business hours.
Repeat the same method for the remaining glass panels. Install the inner panels into the inner upper and lower grooves, and install the outer panels into the outer upper and lower grooves.
Always lift the glass into the upper groove first, then lower the bottom rollers into the lower groove. After each panel is installed, slide it several times to confirm that it moves correctly and does not rub against the frame.
After all sliding glass panels are installed, check the full window system. The panels should overlap evenly, the vertical frames should stay straight, and the glass should move without shaking.
Close the window completely and check whether the edges line up with the frame. If the square food trailer has a lock or latch system, test whether it closes properly.
After installation, wipe the glass and clean the aluminum tracks. Keeping the lower track clean helps protect the rollers and extends the service life of the window.
During daily use, avoid placing heavy objects on the window track. For food trailers, coffee trailers, burger trailers, and other mobile vending trailers, regular cleaning is especially important because dust, oil, and food particles may collect near the service window.
Installing a sliding glass window on a square food trailer is not difficult, but the correct order matters. First identify the inside, outside, top, and bottom of each glass panel. Make sure the rollers are facing downward. Then place the top of the glass panel into the upper groove before lowering the bottom rollers into the lower track.
A properly installed sliding glass window helps improve the working efficiency, safety, and professional appearance of a food trailer. Whether it is used for a fast food trailer, coffee trailer, snack trailer, or custom concession trailer, a smooth and stable service window is an essential detail for daily food business operation.
