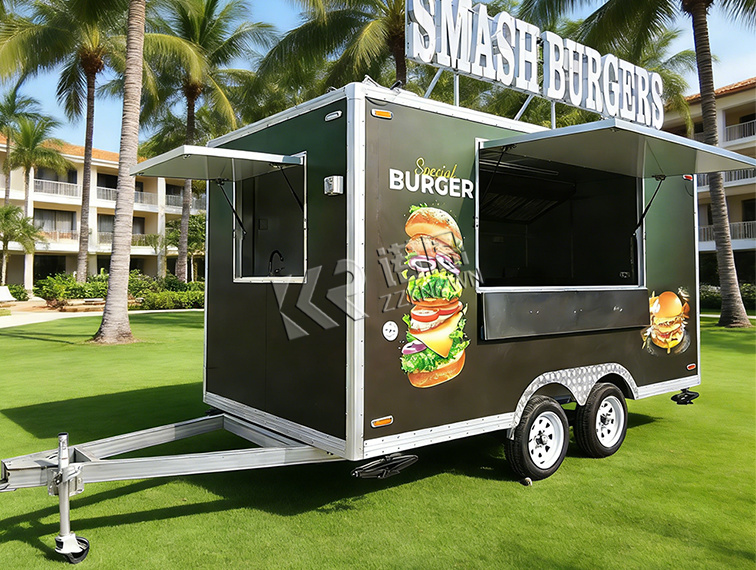

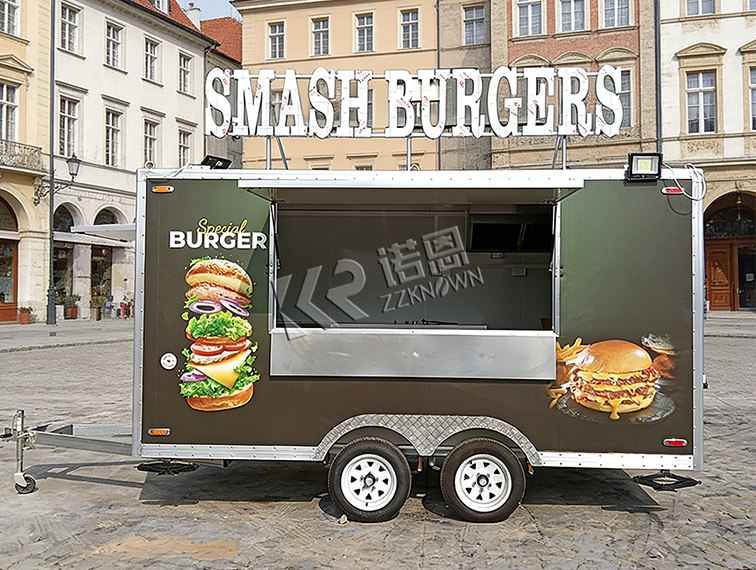

4m Australian-Compliant Smash Burger Trailer

• Overall Size: 4,000 * 2,000 * 2,300 mm

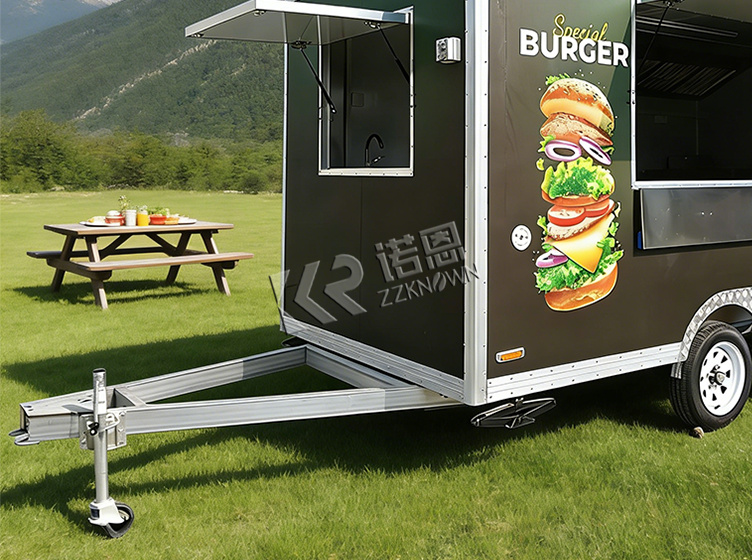

• Chassis: Heavy-duty galvanized steel

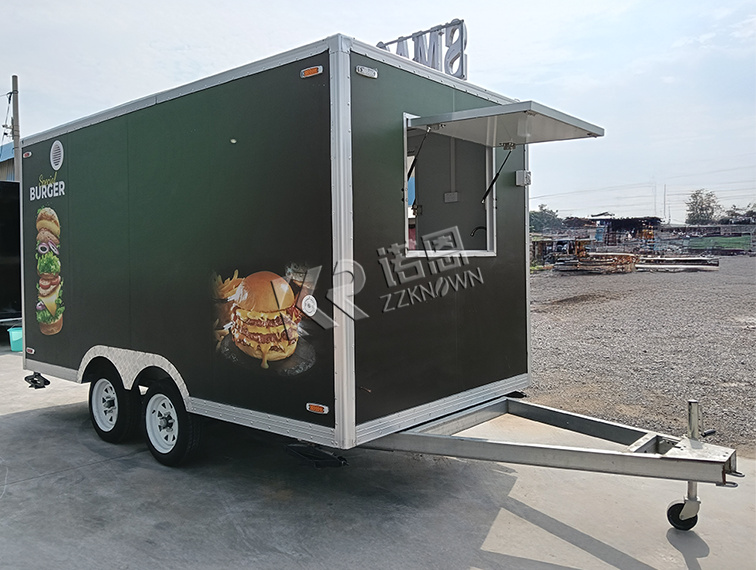

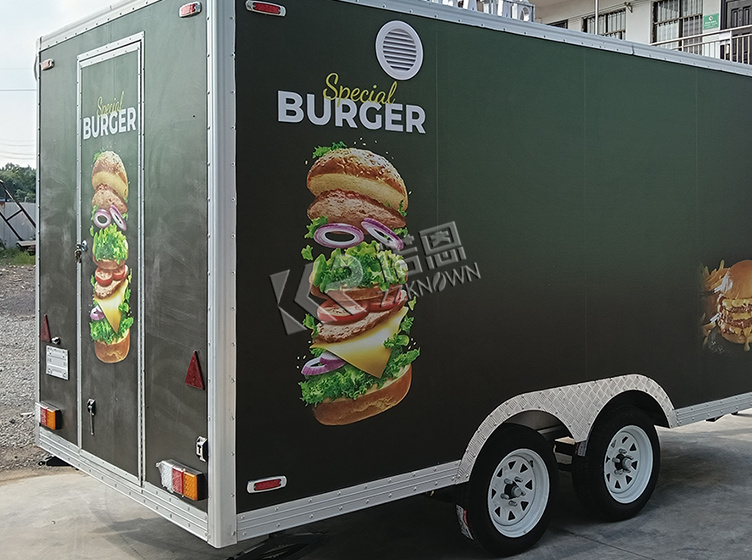

• Axle System: Australian-standard dual axle

• Wheels: 4 wheels with braking system, white rims

• Stability: Suitable for long-distance towing and daily operation

The double-axle configuration ensures better weight distribution and safer towing—especially important when fully equipped.

Exterior Design for Maximum Sales

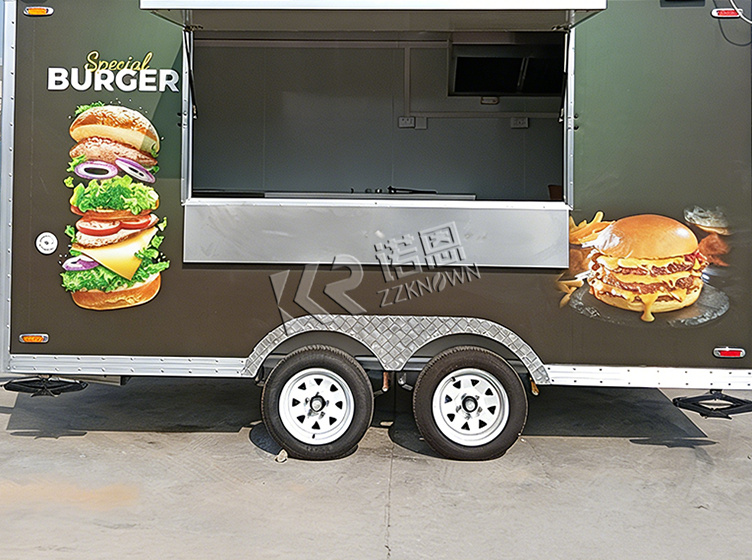

• Extra-large serving window (2.0 × 0.95 m)

• Fold-down serving shelf for fast customer flow

• Two LED work lights above the serving window

• RAL 9005 Jet Black body color – premium, modern appearance

• Full custom burger graphics & logo

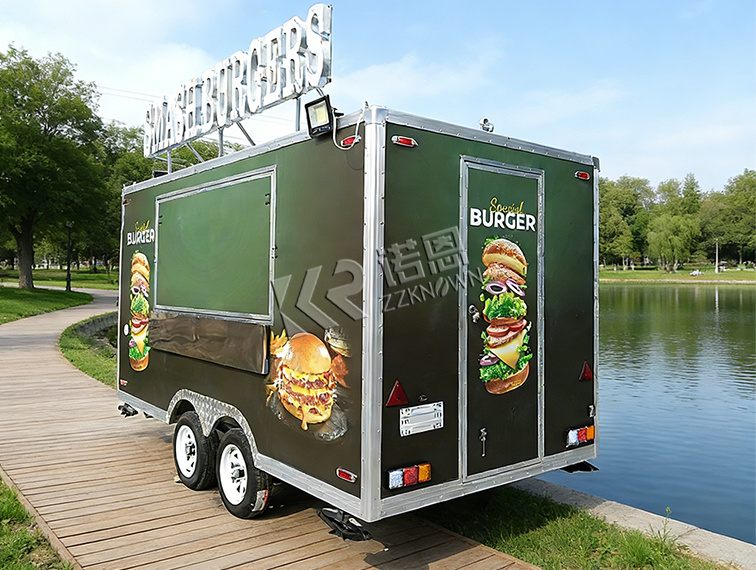

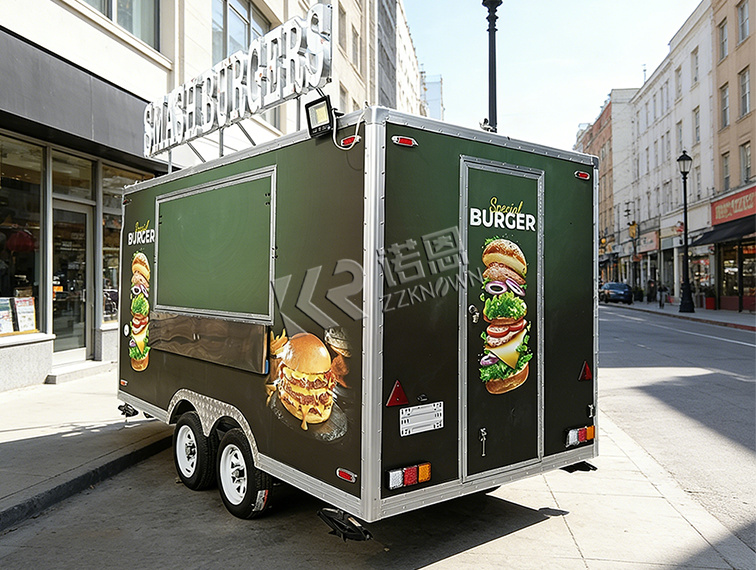

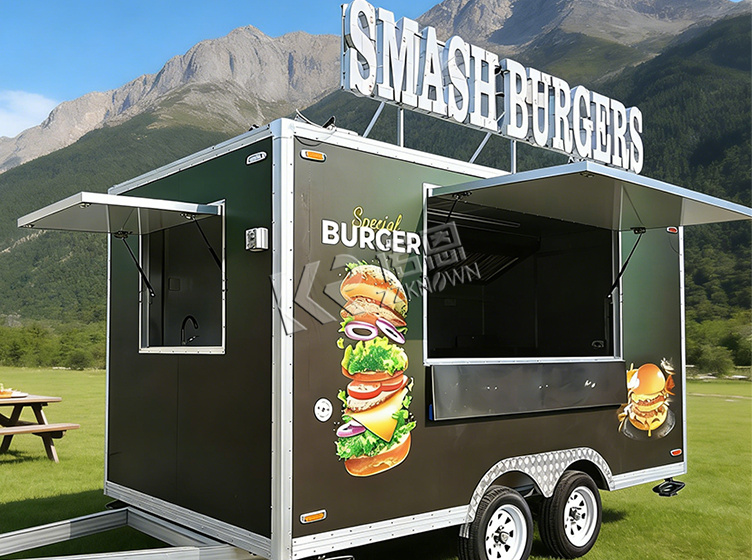

• 3-meter illuminated roof sign
  Text: “SMASH BURGERS”

• Movable advertising sign brackets for promotions

This trailer is designed to stand out in daylight and dominate at night.

Electrical System – Australian Specification

• Voltage: 220V / 50Hz

• Australian standard sockets: 6 pcs

• Australian three-color wiring

• All cables fully concealed in cable trunking

• Internal LED lighting

• Interior CCTV camera installed

Built to meet Australian safety expectations and simplify council inspections.

Interior Layout & Workstations

• Full stainless steel interior

• Kick plates installed along walls

• One fixed stainless steel workbench
  – storage cabinets below

• One folding stainless steel table (serving side)
  Size: 150 × 30 cm

• Integrated cash box

This layout provides a clear workflow for:

• Burger prep

• Frying

• Grilling

• Order handover

Water System & Hygiene Setup

• 2 + 1 sink configuration

• Hot & cold water faucets

• Grease trap on double sink

• Water–oil separator installed

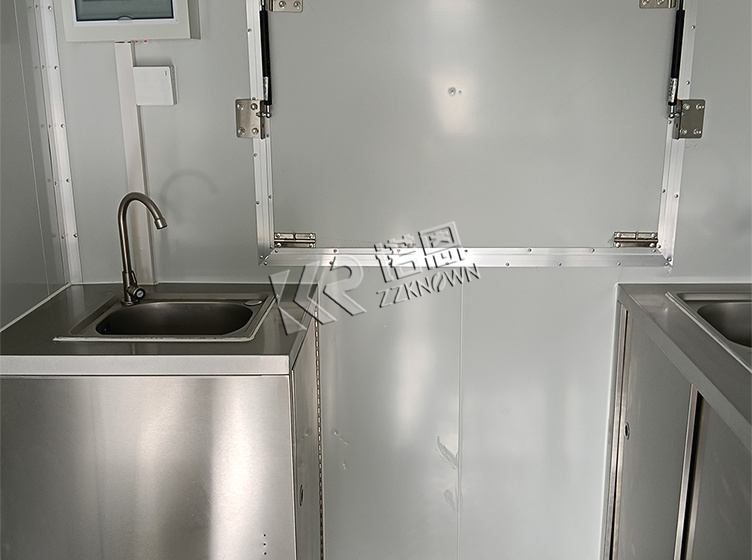

• Additional handwash sink near drawbar

• External water inlet for direct mains connection

Designed to align with common Australian council food safety requirements.

Cooking Equipment & Gas System

• 1.2 m dual-temperature fridge/freezer

• Commercial vertical fryer

• Commercial flat-top griddle

  • Built into workbench

  • 30 cm safety clearance between fryer & griddle

• AGA-compliant Australian gas pipeline

• External gas outlet suitable for soft hose connection

• Custom gas bottle rack

  • For Ø400 mm × 1200 mm cylinders

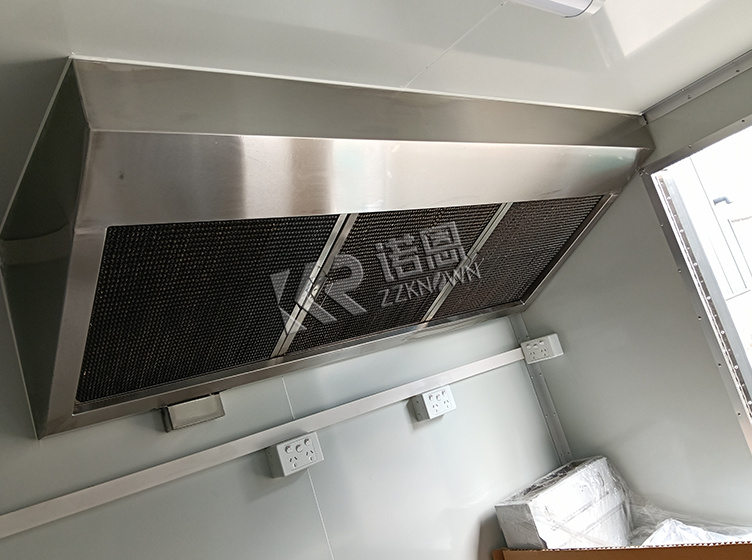

• 1.5 m Australian-standard range hood

  • Honeycomb grease filter

This setup is optimized for smash burgers, fries, and fast turnaround service.

Road-Legal Lighting & Safety (Australia)

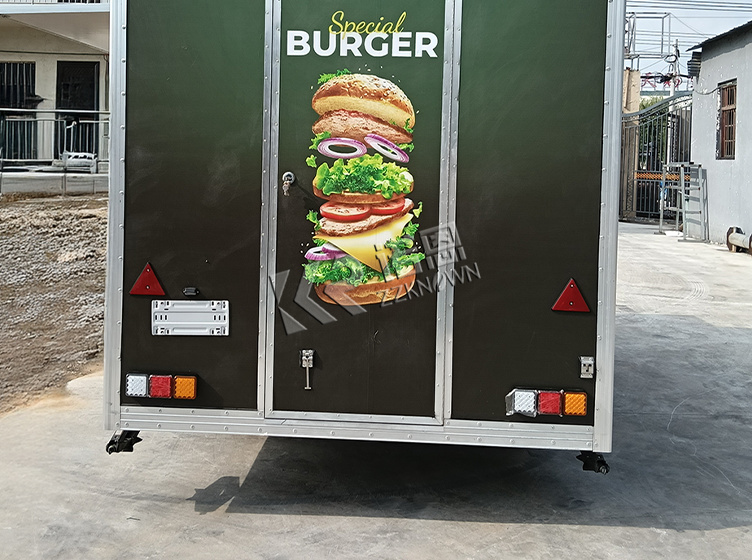

• ADR-approved tail lights

• License plate light & bracket

• Clearance lights

• Reflective triangle plates

Ready for road registration, transport, and inspection.
